Installation Hardware Kit

Getting ready to install your plantation shutters? Our guide covers everything included in your hardware kit, from slat pins to frame fixings, so you have everything you need before you start.

Hardware Box Contents – Hardwood Shutters

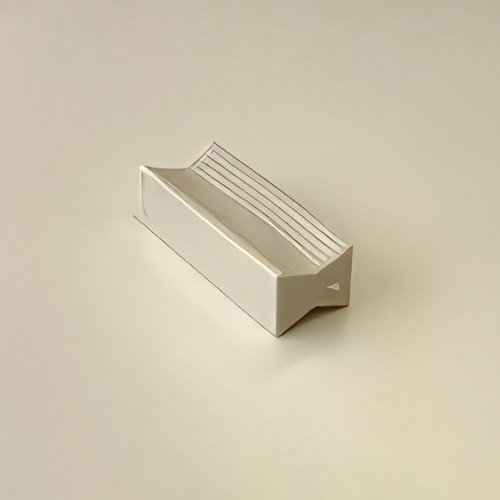

Hoffman key

These will often be pre-inserted into the frame sides.

Black frame screws

This depth is ideal for most installations. If you have ordered a large build out and will be fixing as an outside mount, you may want to source a deeper screw or countersink the hole further. These screws are 4.2 x 60mm.

Hinge fixing screws

These will be used at the very end of installation to fix the hinge placement once happy with how the panels hang.

Hinge pin

To attach the panels to the frame, the hinge pin is dropped in to connect the frame hinge part to the panel hinge part.

Panel feet

These can be placed under the bottom of the panel to lift the panel and give an even light gap.

Hinge packer

These can be placed underneath the hinges if you would like to give them a bit of a lift.

Tension Hole Caps

We recommend leaving the tension holes exposed for easy access. However, these caps are provided in case you would prefer to cover them.

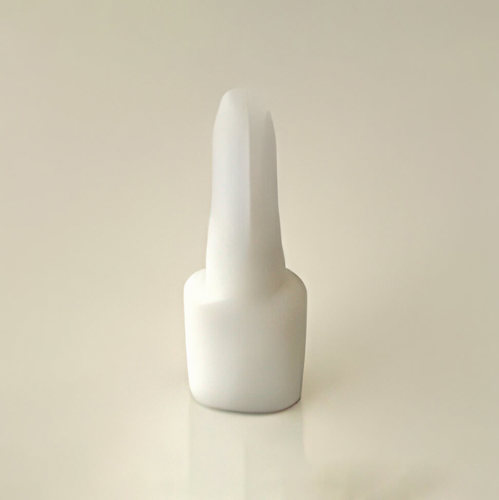

Touch-up Paint

Can be used to touch up any scratches or marks.

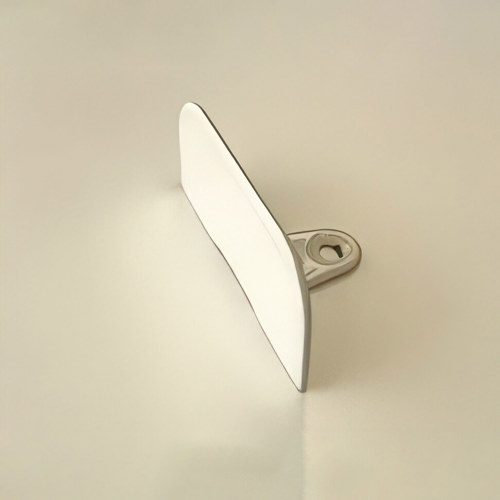

L Striker Plate

For 3 sided (Left, Right, Top) frame orders. This can be fixed to the window sill for the panels to close against.

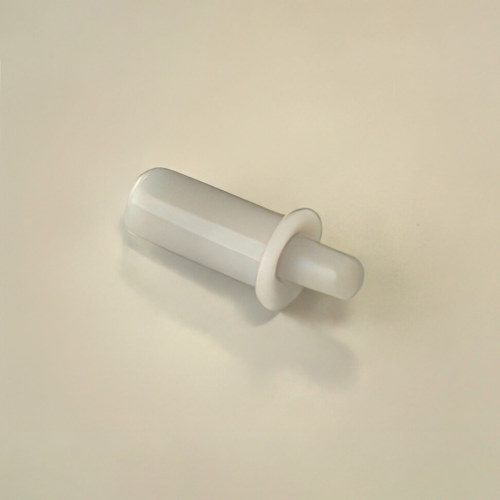

Slat Pin - Telescopic

This pin is spring loaded to insert the slat into the panel. For all tilt rods.

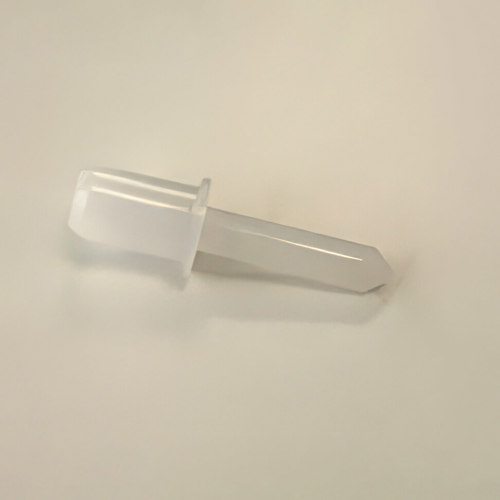

Slat Pin - Long

This is the longer fixed pin for inserting the slat into the panel. For central and clearview tilt rods.

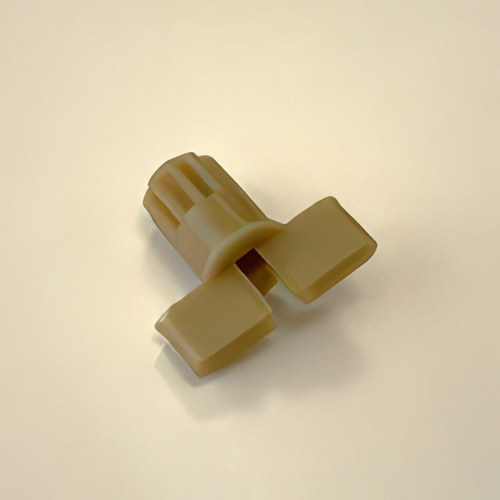

Slat Pin - Hidden Tilt

This will be inserted on the side of the slat that interacts with the hidden tilt rod mechanism.

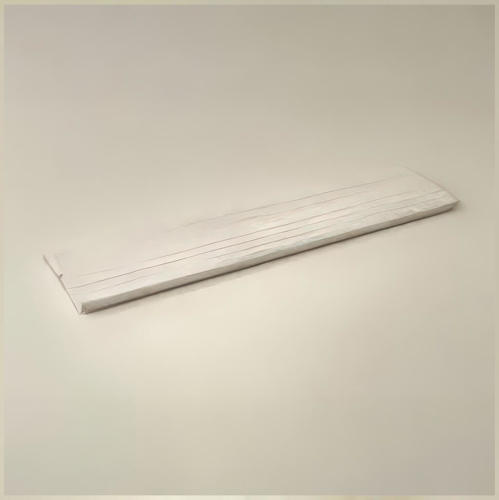

Spare Slats

You will receive a spare slat per shutter in your order. We recommend you keep this in a safe place in case you ever need it.

Light Block

If you selected a 3 sided frame, you will receive a 20x20mm light block. This can be installed on your window sill for the panels to close against and block light.

Hardware Box Contents – Faux Wood Shutters

Hoffman key

These will often be pre-inserted into the frame sides.

Silver frame screws

Hinge fixing screws

These will be used at the very end of installation to fix the hinge placement once happy with how the panels hang.

T-Bar Screws

For Tier on Tier shutters, there will be two screws to fix the T-Bar in place within the frame.

Hinge pin

To attach the panels to the frame, the hinge pin is dropped in to connect the frame hinge part to the panel hinge part.

Hinge packer

These can be placed underneath the hinges if you would like to give them a bit of a lift.

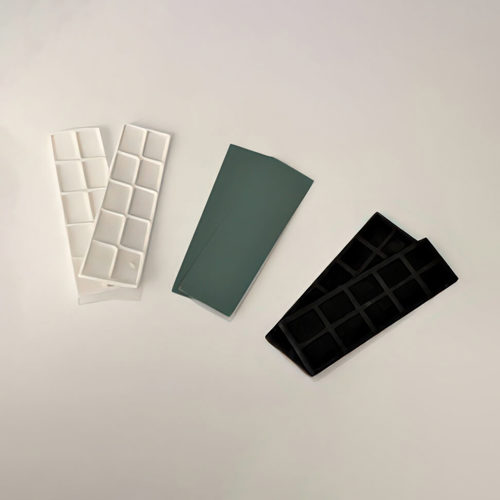

Packing shims

Sizes 1mm, 2mm and 3mm. These can be used to ut underneath the frame or between the frame and wall for a level installation.

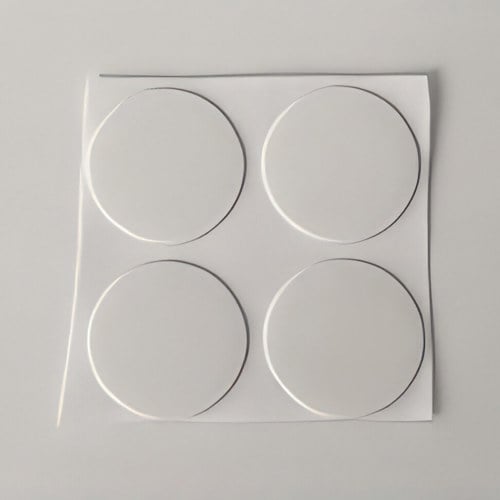

Screw Cover Stickers

These stickers can be used if any holes need to be drilled upon installation that would not be covered by the cover strips. They can also be used to cover tension holes.
